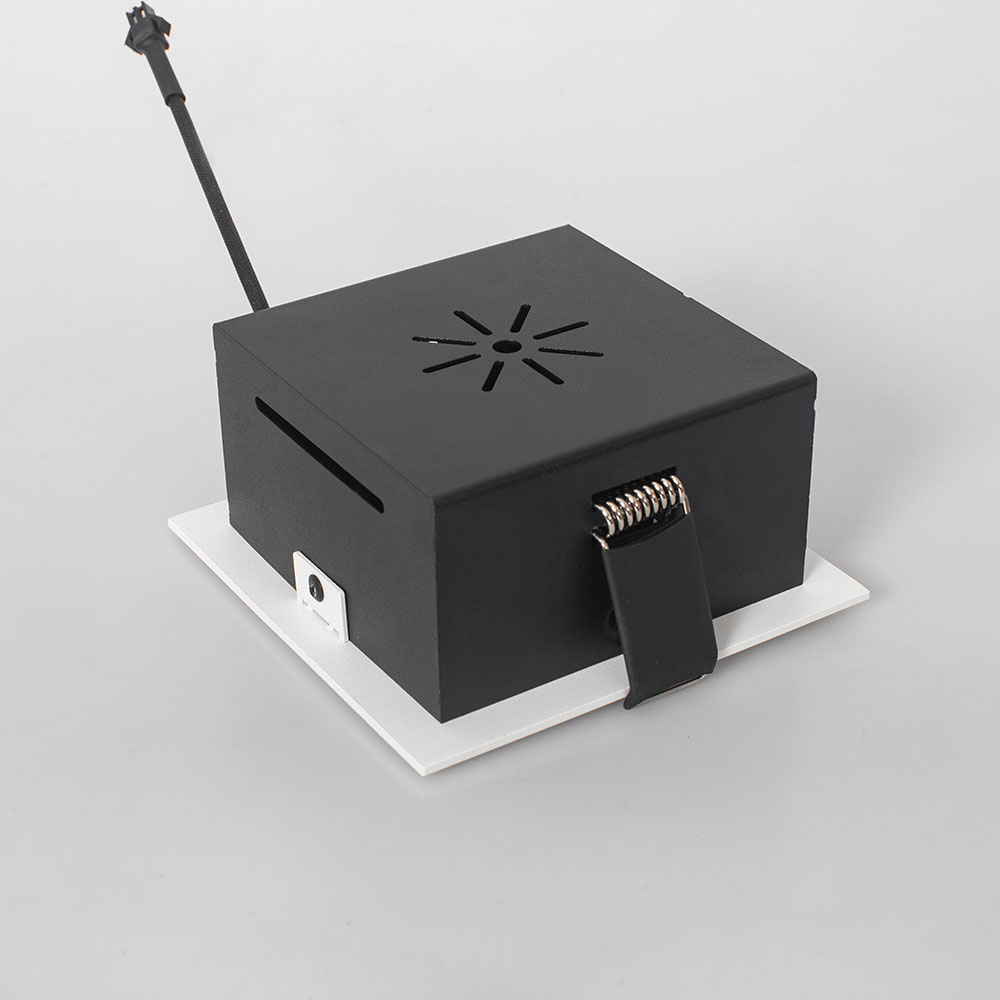

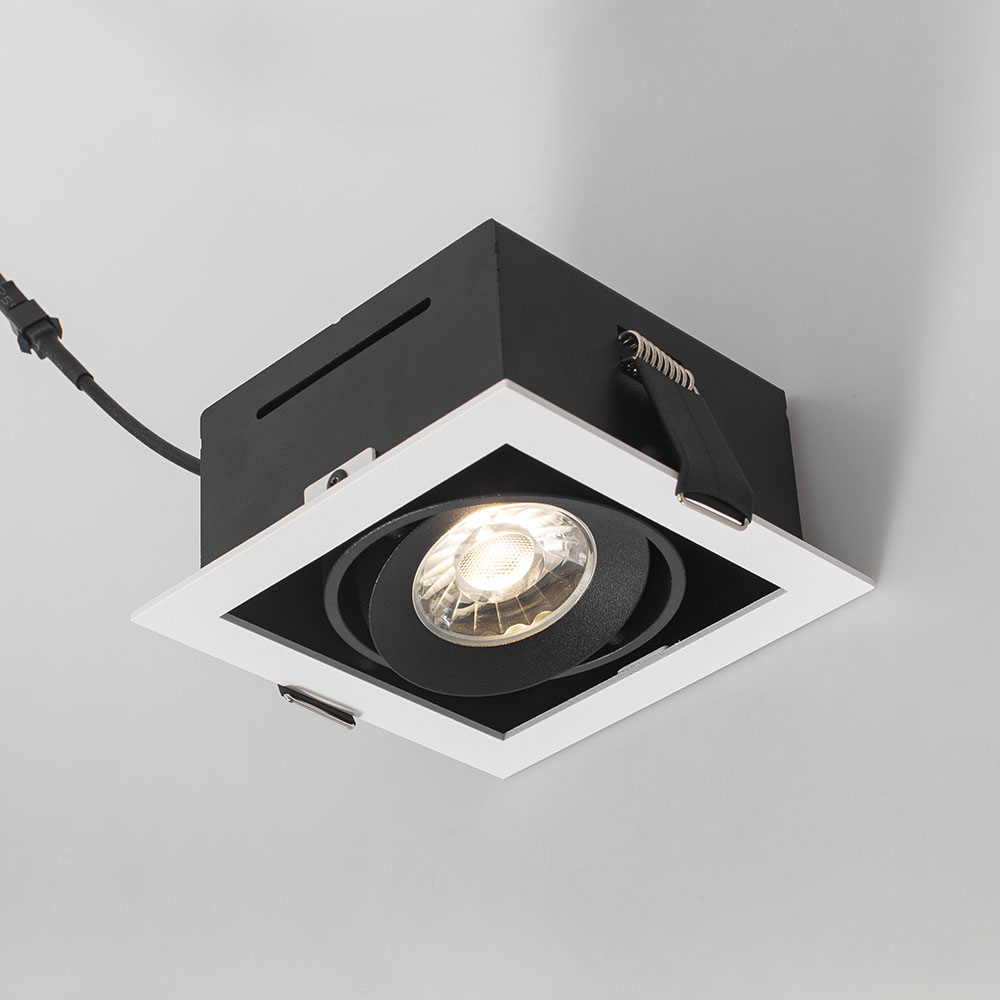

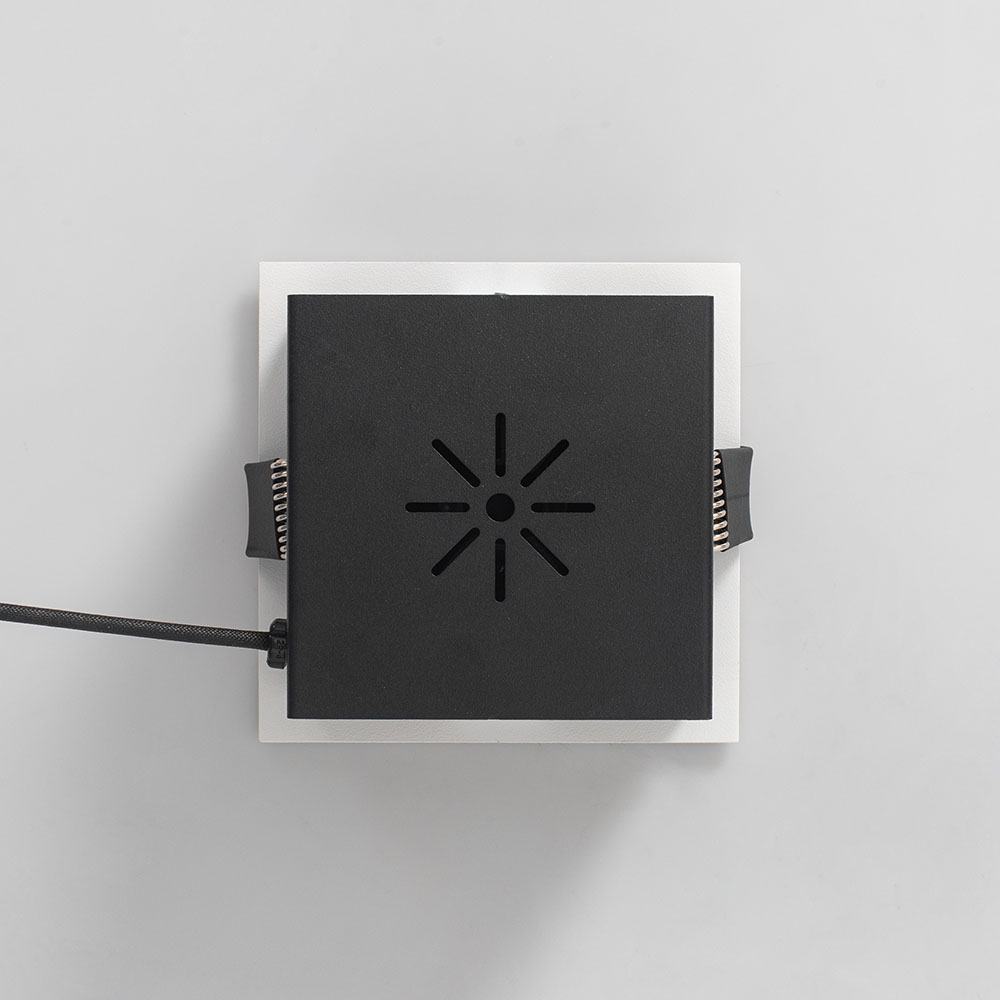

Cube Compact 100
Model: DL3232
Slim trim & cube fix design; Different beam angles;
Color: 101 Textured White
Spec overview
Output (W)
9W (250mA 36V)
Real Lumen
650lm
LED CCT
2700K/3000K/4000K
Beam
15°/24°/36°
Specifications
Light source
Cree CXA1507
Output (W)
9W (250mA 36V)
Total power consumption (W)
10W
Color temperature
2700K/3000K/4000K
CRI
90
Photobiological risk
RG1
Real Lumen
650lm
Qty Leds
1pc
Lm/Real W
Min.80
Life Time
50.000h L80B20
MacAdam steps
2
UGR
<19
Warranty
Damage caused by misuse
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
5 year warranty
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
Resources
Cube Compact 100

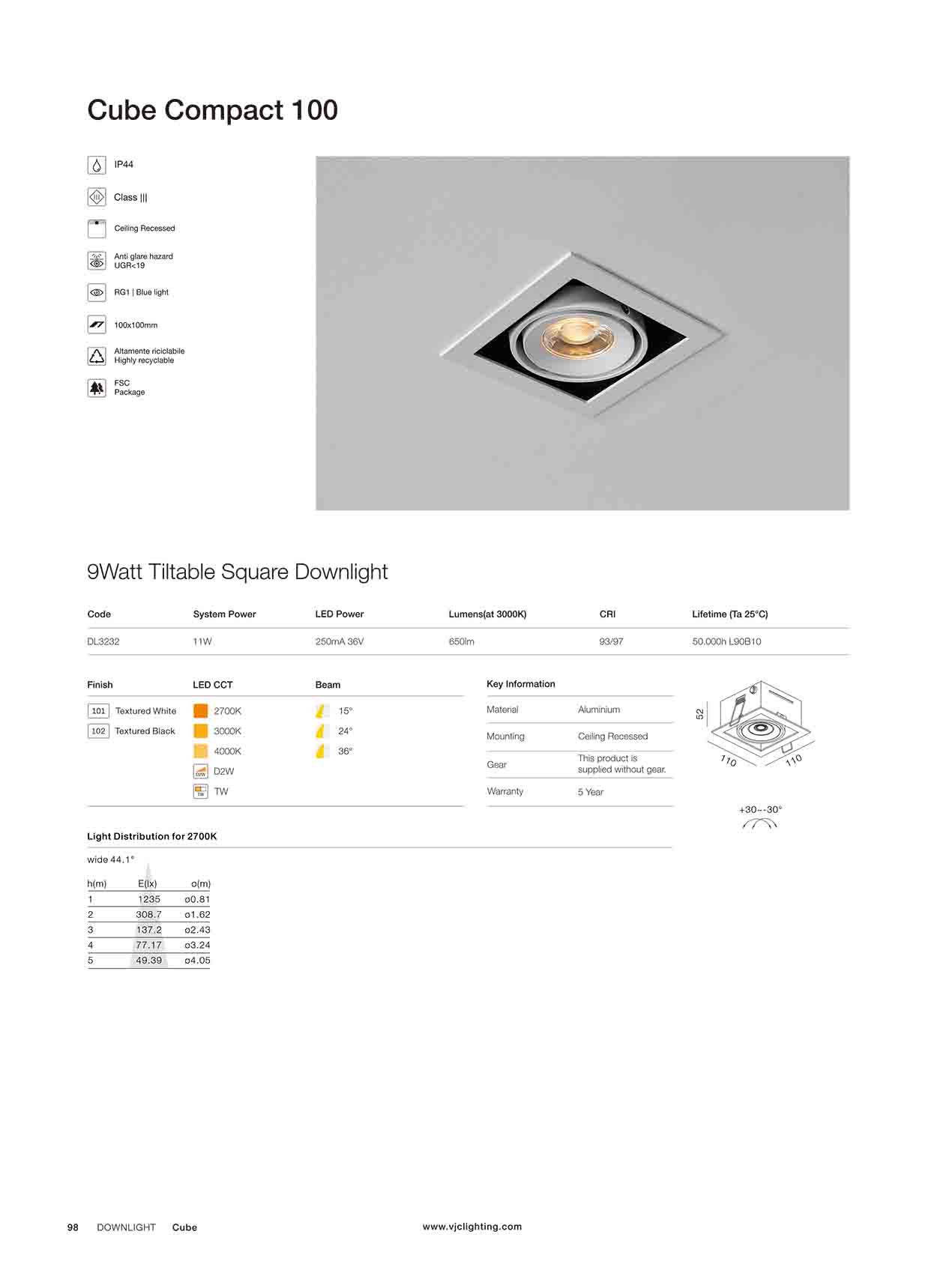

Catalogue
Cube Compact 100
Datasheet
Cube Compact 100

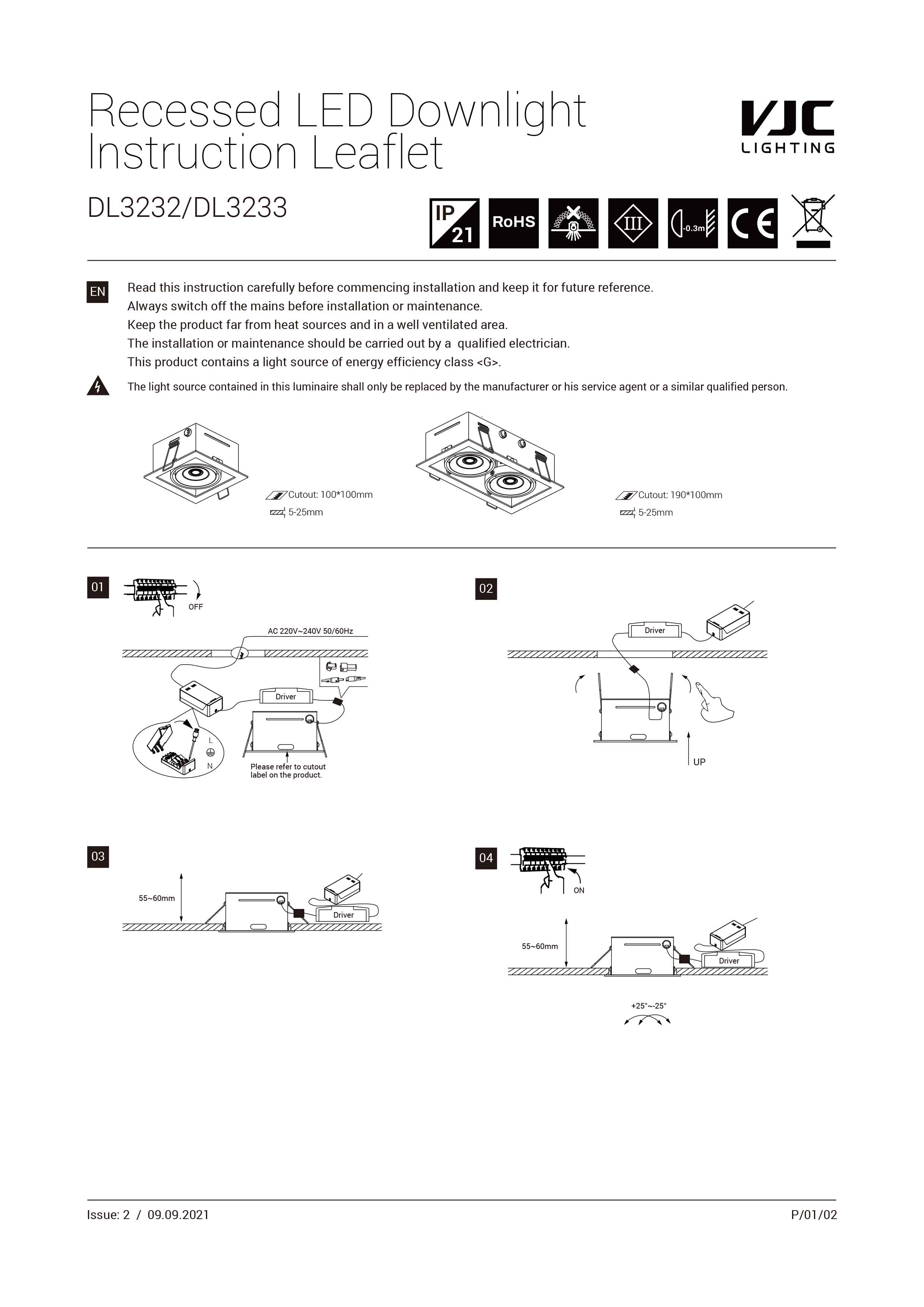

Instructions
Cube Compact 100
IES
