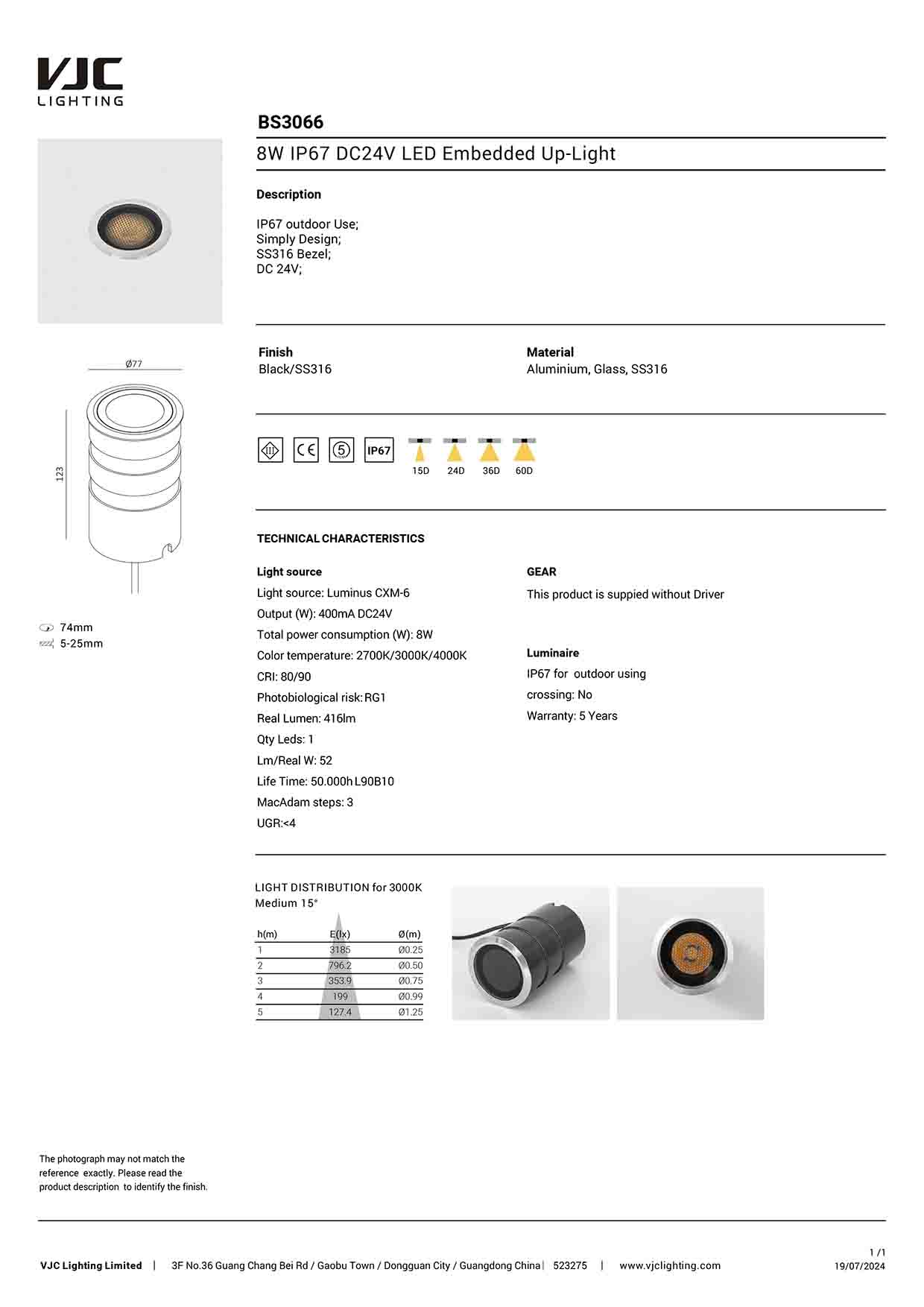

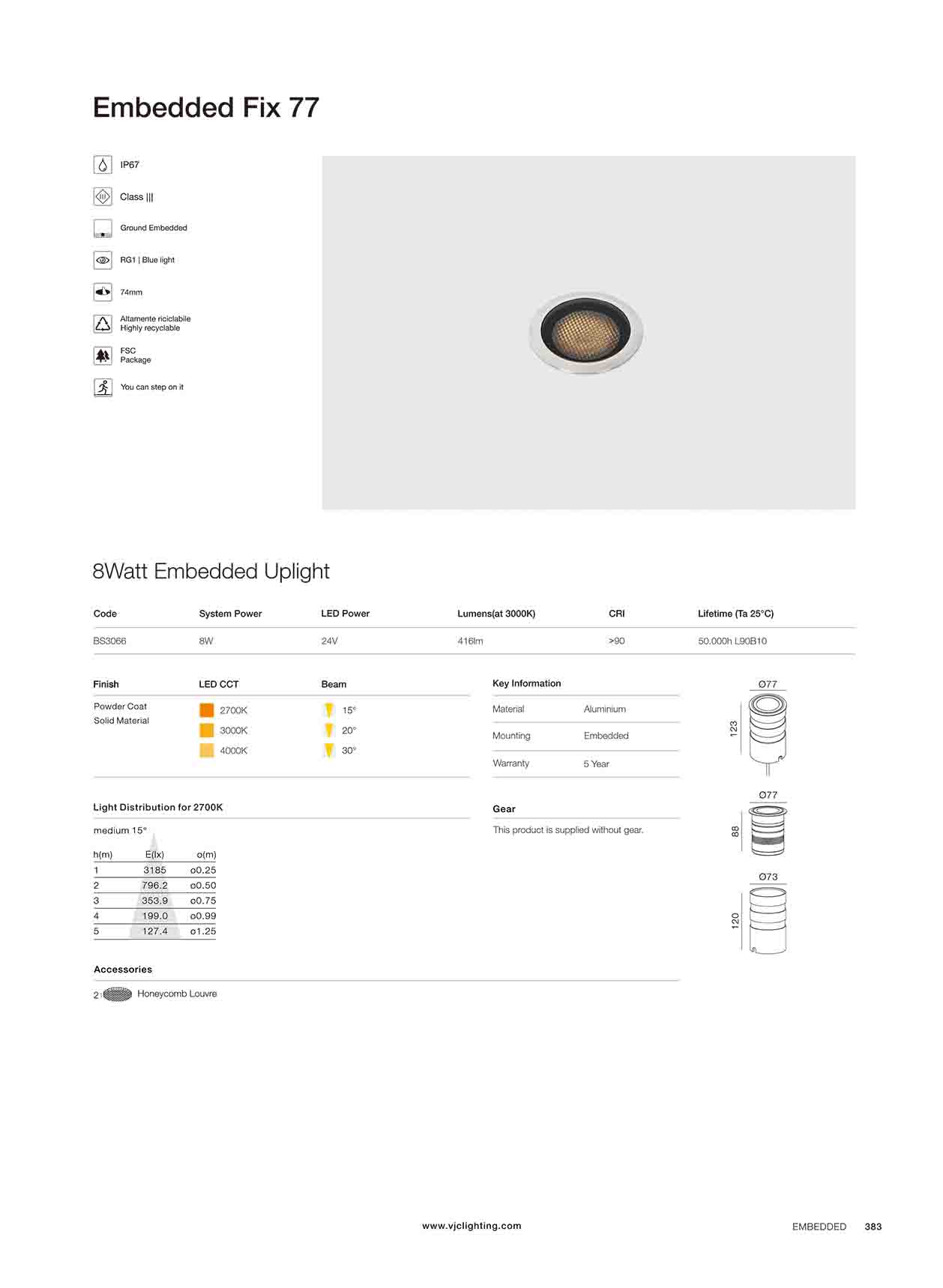

Embedded Fix 77
Model: BS3066
IP67 outdoor Use; Simply Design; SS316 Bezel; DC 24V;
Color: 501 Polished SUS316
Spec overview
System Power
8W
Lumens(at 3000K)
416lm
LED CCT
2700K/3000K/4000K
Beam
15°/20°/30°
Specifications
Light source
Luminus CXM-6
Output (W)
400mA DC24V
Total power consumption (W)
8W
Color temperature
2700K/3000K/4000K
CRI
80/90
Photobiological risk
RG1
Real Lumen
416lm
Qty Leds
1
Lm/Real W
52
Life Time
50.000h L90B10
MacAdam steps
3
UGR
<4
Warranty
Damage caused by misuse
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
5 year warranty
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
