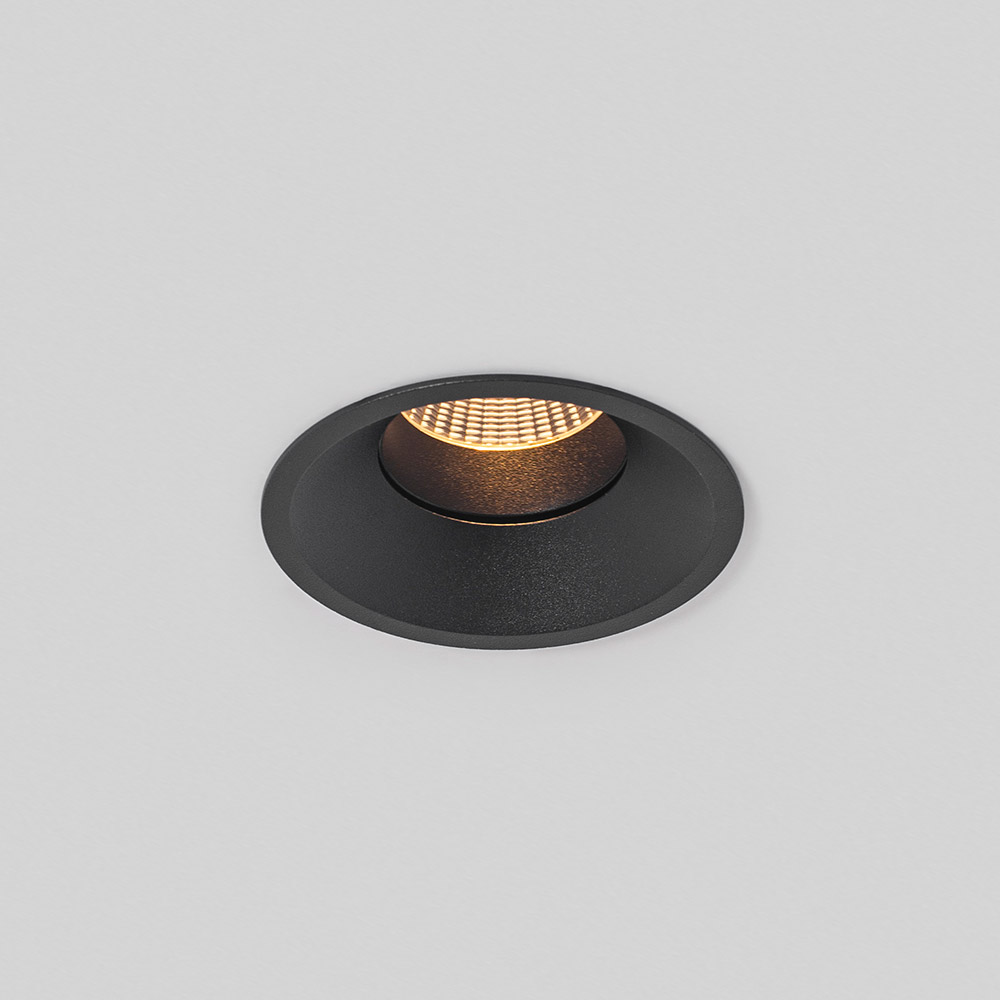

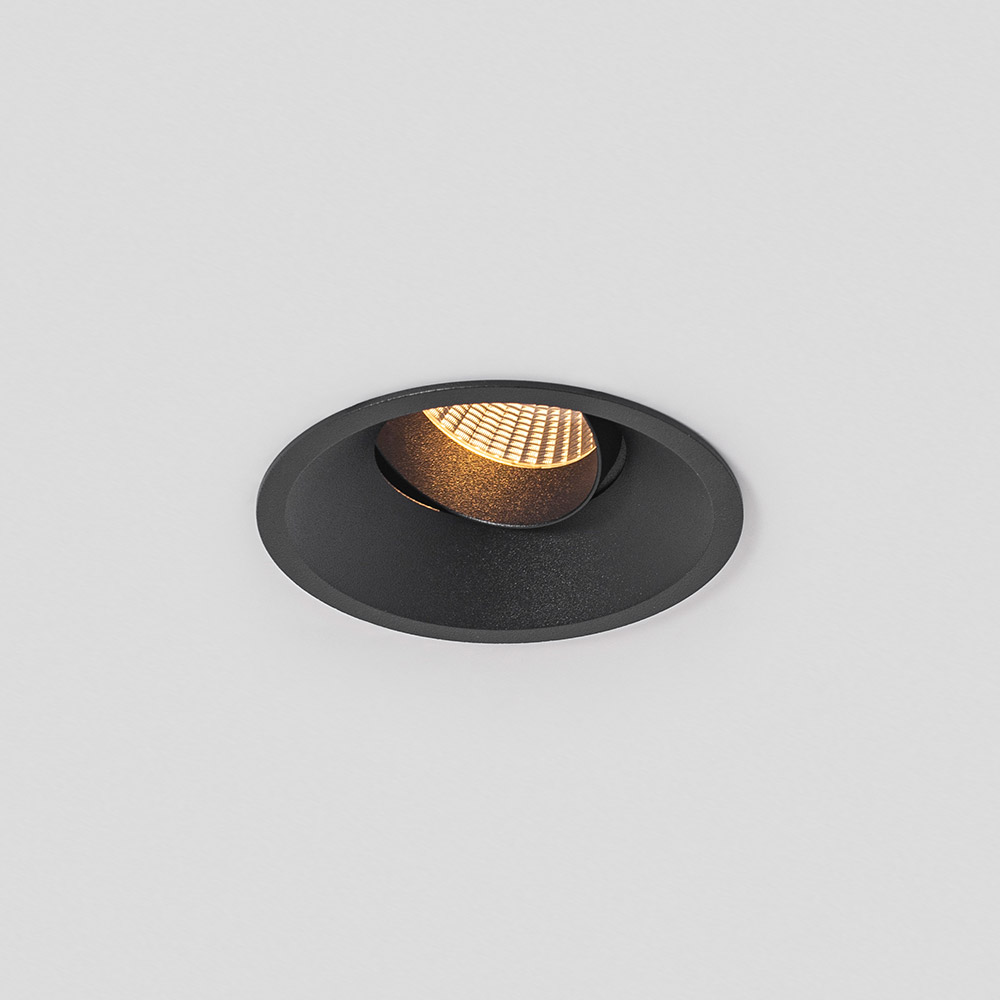

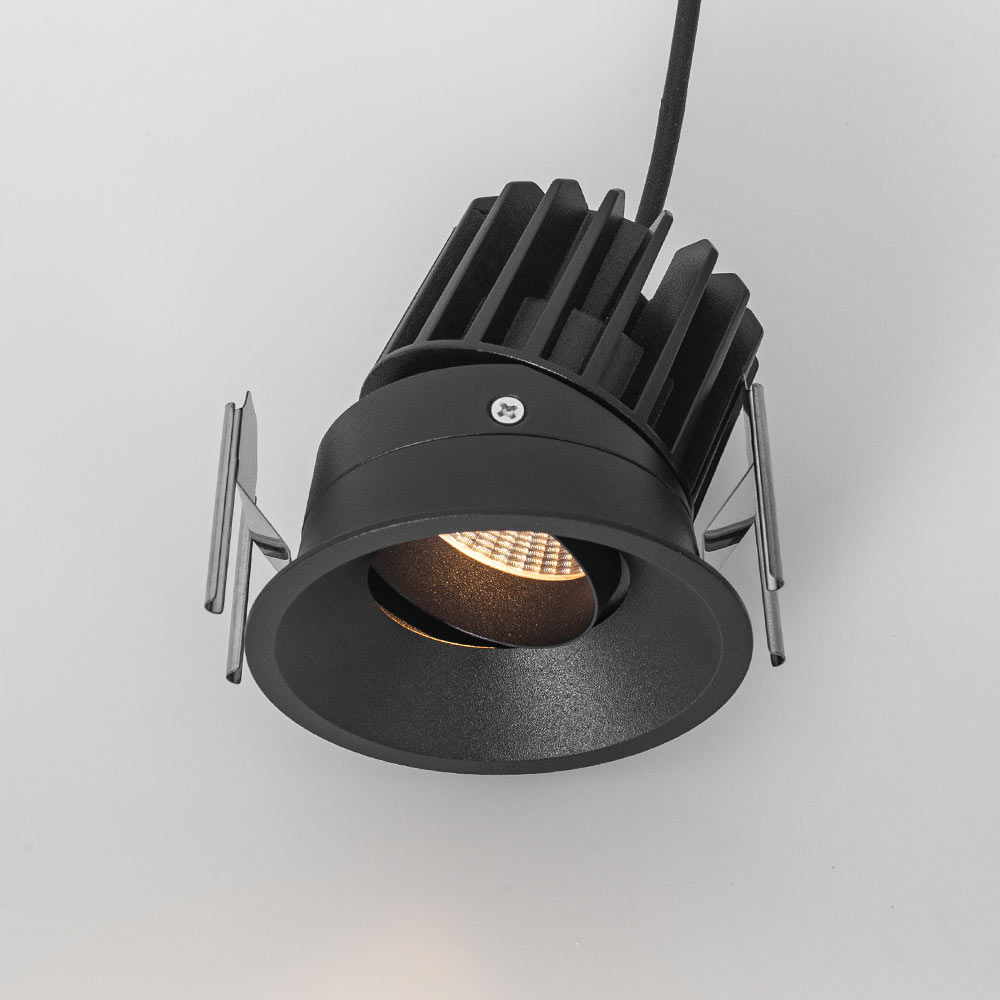

Classic Tilt 75
Model: DL3854
Modulized; Low glare reflector; Interchangeable reflectors with different beam angles; Suitable for concrete installation;
Color: 102 Textured Black
Spec overview
Output (W)
9W (250mA 36V)
Real Lumen
809lm
Color temperature
2700K/3000K/4000K
Beam
15°/24°/38°/60°
Specifications
Light source
Citizen CLU02Q-1202
Output (W)
9W (250mA 36V)
Total power consumption (W)
10W
Color temperature
2700K/3000K/4000K
CRI
90
Photobiological risk
RG1
Real Lumen
809lm
Qty Leds
1pc
Lm/Real W
Min.80
Life Time
50.000h L80B20
MacAdam steps
2
UGR
<19
Warranty
Damage caused by misuse
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
5 year warranty
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
Resources
Classic Tilt 75

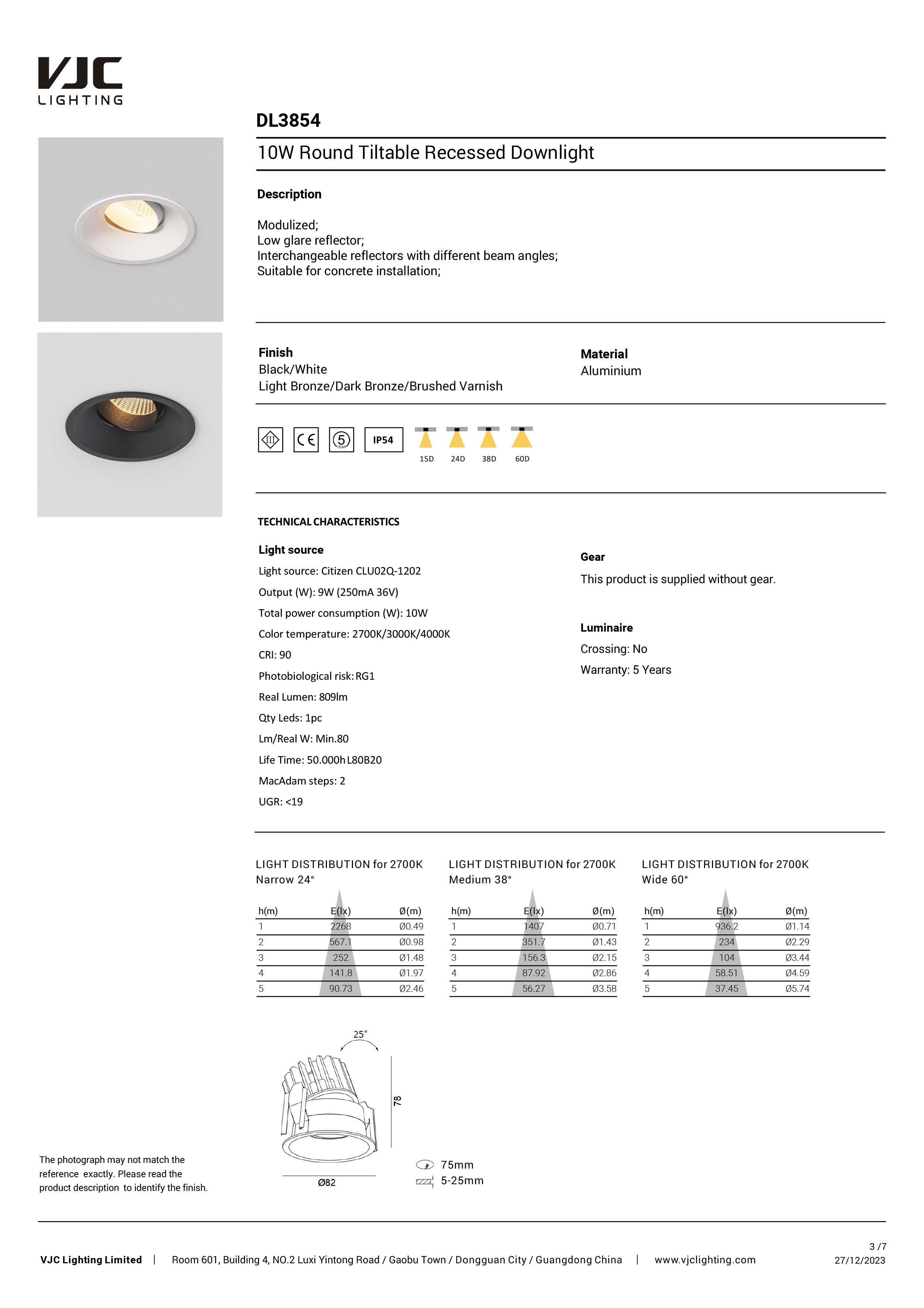

Datasheet
Classic Tilt 75

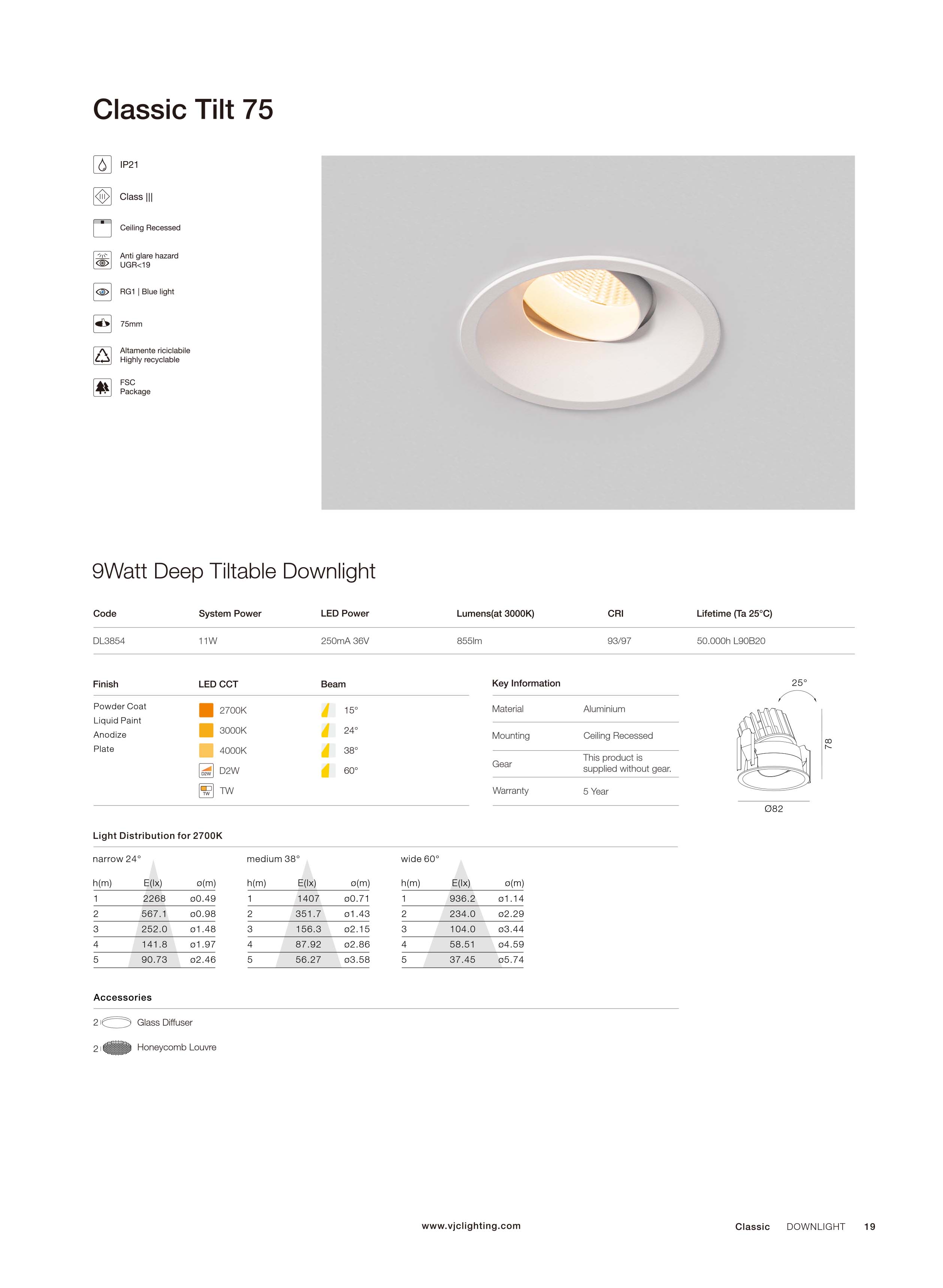

Catalogue
Classic Tilt 75

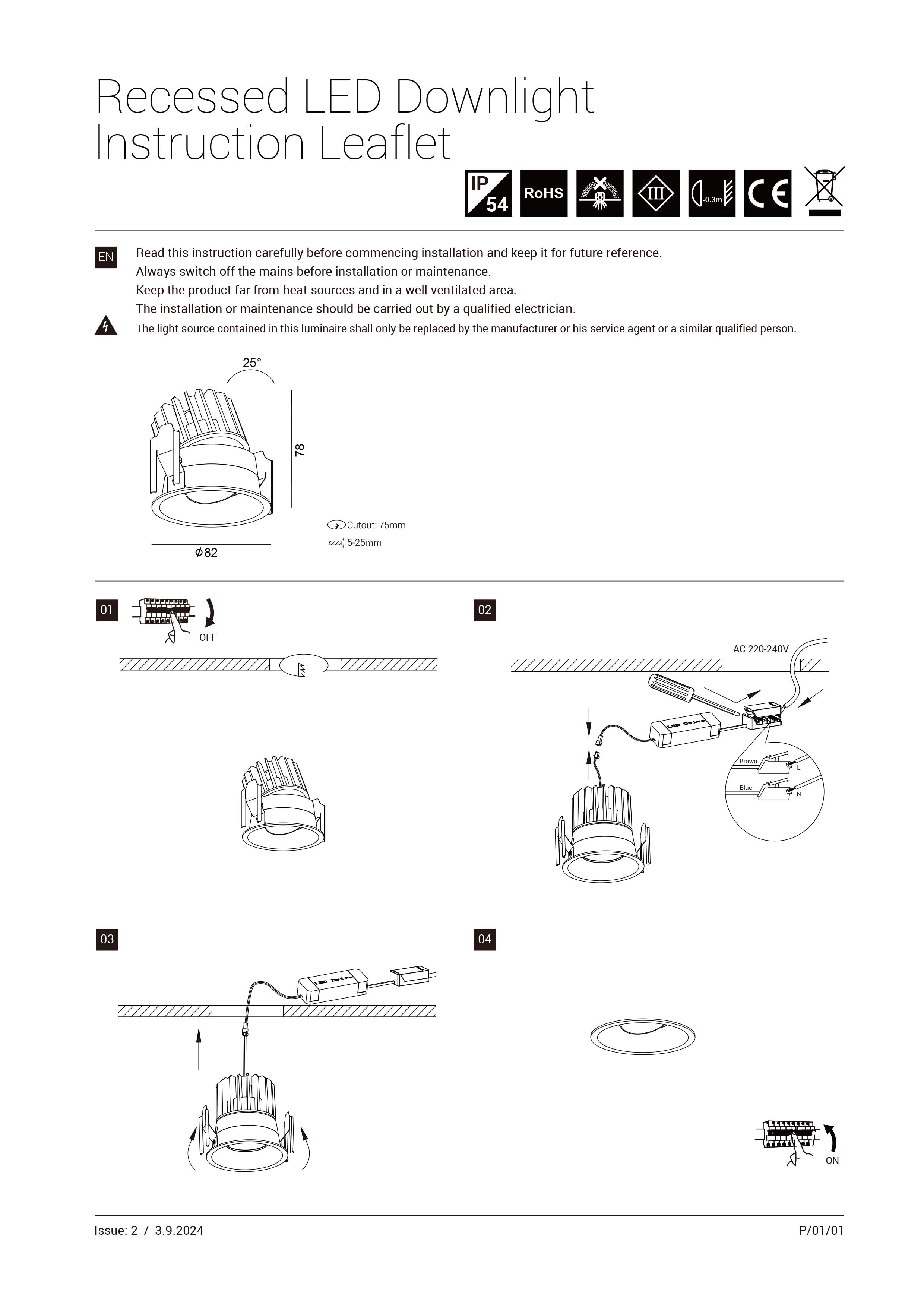

Instructions
Classic Tilt 75
IES
